Authentic Power Over Ethernet

Passive PoE™ (Power over Ethernet) is a simple way of providing power to an access point through an ethernet cable. Passive PoE™ uses free wires in the ethernet cable to send the equipment's power along them to the other end.

PassivePoE™ is our original solution. Avoid using low-cost or anonymous copies in order to avoid the risk of damaging your device. We deliver Injector only or Whole Set, both using standard 5.5×2.1 mm DC power jack.

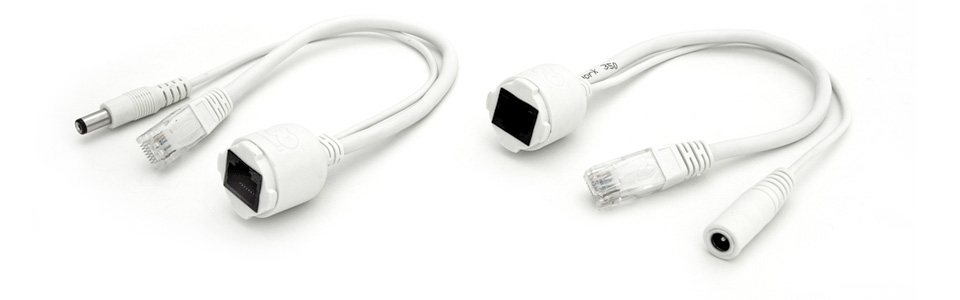

PassivePoe headerimg

How It Works

The complete Passive PoE™ set contains two pieces: an injector and a splitter. It is designed for products that do not support Power Over Ethernet by default. Passive PoE™ set can be used with a wide range of network products such as access points, routers, IP cameras, modems, switches, or embedded computers.
The range of Passive PoE™ usually reaches 30-40 metres (100-130 ft) but the actual distance depeneds on the power supply or the device, among others. Passive PoE™ can be used with the power adaptor commonly supplied with the network device.

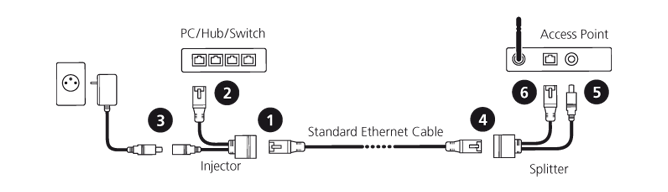

passive poe schema

Panel Installation

Our Passive PoE™ can be easily integrated into the face plate of your network device. Create a cutout in the plate as depicted below, and simply insert and turn the cable.

help bulkhead mount

Models

Passive PoE™ Set V2

Product ID: POESETv2

Passive PoE™ Injector V2

Product ID: POEINJv2
