Asymmetrical Horn TP Antennas Overview Download Gallery

Game Changing Sector Antennas

Asymmetrical Horn TP Antennas provide asymmetrical beam shape and game-changing TwistPort™ (TP) connector. Asymmetrical Horn TP Antennas provide excellent noise rejection, network scalability and throughput increase. Providing specific beam shape, increased antenna gain and excellent noise rejection, Asymmetrical Horn TP antennas complement the successful Symmetrical Horn Antennas.

HG3 TP A Group Web

Unique Asymmetrical Beam

Asymmetrical Horn TP Antennas have unique beam shape. The beam cross-section in bore sight is elliptical: wide in azimuth and narrow in elevation plane. This is useful for deployments where where asymmetrical beam shape delivers better coverage.



No Side Lobes

Asymmetrical Horn TP Antennas have naturally depressed side lobes: they focus energy into single main beam. Absence of side lobes enables excellent noise immunity of Asymmetrical Horn TP Antennas.



Wide Band Performance

The radiation pattern of Asymmetrical Horn TP Antennas is stable over the whole frequency range.





Gain Performance

Asymmetrical Horn TP Antennas provide increased gain when compared to Symmetrical Horn TP Antennas with the same azimuth beam width. Asymmetrical Horn TP Antennas cover ultra-wide frequency range: 5180-6000 MHz with excellent VSWR performance.

a60 gain 01

Balanced H + V Beams

Asymmetrical Horn TP Antennas have balanced Horizontal and Vertical beam patterns. Balanced H+V beams are very difficult to achieve for antenna with asymmetrical beam shape and this is the area where all competitive products on the market fail. Balanced H+V beams are critical feature for link performance.


Perfect Coverage Pattern

Mainstream patch array sector antennas have radiation pattern extremely wide in azimuth and extremely flat in elevation plane. If an AP is deployed on a tall tower, customers near the tower suffer from low AP signal level. Asymmetrical Horn TP Antennas provide valuable extra degrees in elevation beam width, shrinking the null zone while preserving increased gain for long range performance.



Breakthrough Scalability: Expanded

RF elements® Horn TP Antennas provide extraordinary scalability options. Asymmetrical Horn TP Antennas are new addition to the tool box. Unique beam performance, precise radiation patterns and increased gain push system scalability even further.

porovnanie mensie 0 00 00 00 frame1

Co-Location Miracle

Asymmetrical Horn TP Antennas have naturally depressed side lobes and extremely low back radiation. Asymmetrical Horn TP Antennas are perfect for high density sector clusters with demanding co-location requirements.

HG3 TP A Group Co Location v2

TwistPort™ Connector

Asymmetrical Horn TP Antennas feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless: there are no coaxial connectors or cables that attenuate signal. Connecting radios is ingeniously simple - “twist and lock” - with a single hand!


Cross-Platform Compatibility

Wide range of TwistPort™ Adaptors enables connection of the most popular connectorized radios of third party vendors, such as UBNT™, Mimosa™, MikroTik™ or Cambium Networks™, directly to any TwistPort™-enabled antenna.

HG3 Cross Platform Compatibility v3

Built Like a Tank

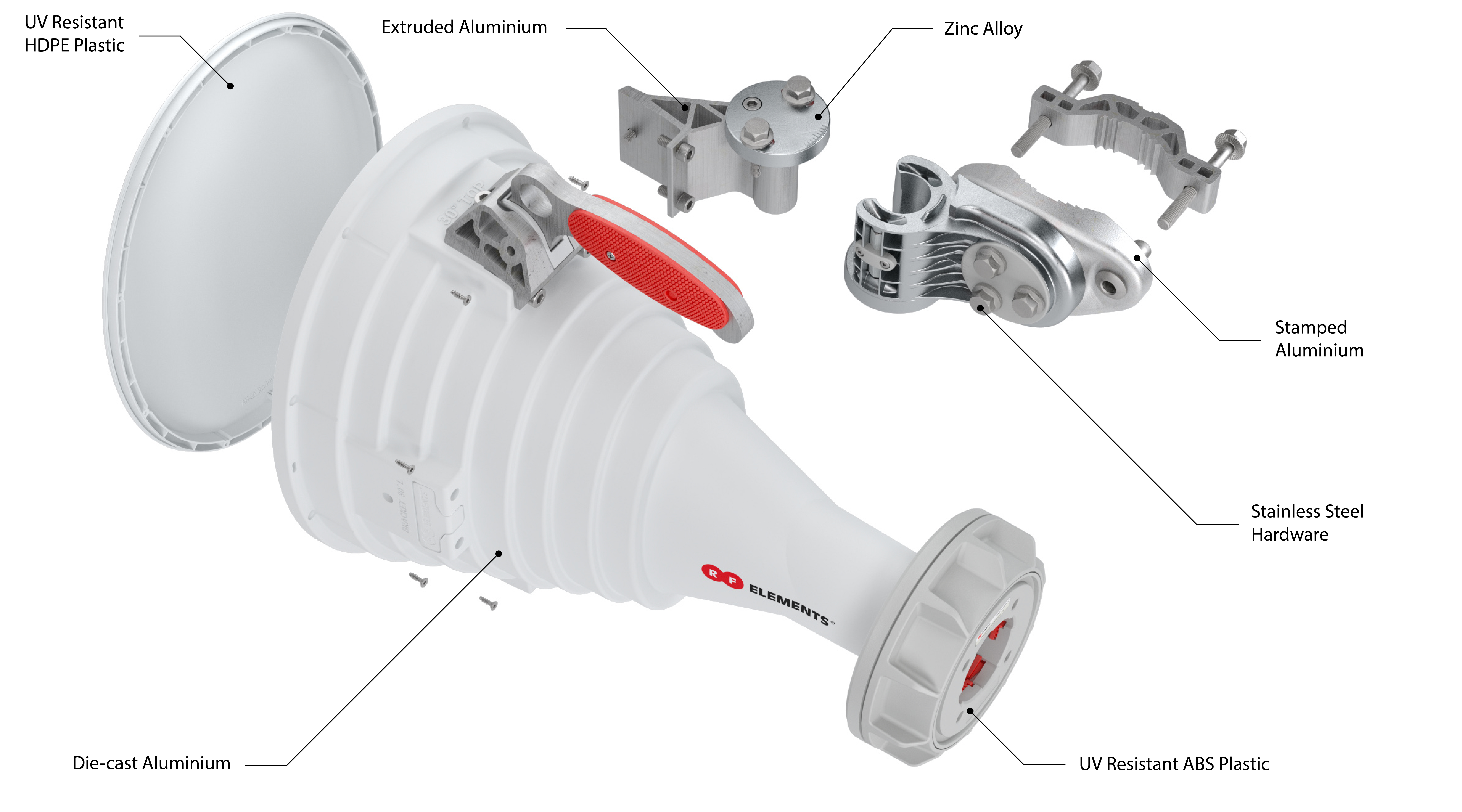

Asymmetrical Horn TP Antennas have solid aluminium body, built to last and resist any weather conditions. We use the most suitable materials: die cast, stamped and extruded aluminium; stainless steel, high quality ABS plastic and high density polyethylene.

HG3 TP A30 built tank v3

Innovative Bracket

Asymmetrical Horn TP Antennas feature an innovative mounting system. The mount is separated from the antenna, making the installation and adjustment quick and easy.

Step 1: Bracket Installation

First install the bracket on the pole. The pole bracket is reversible: it can be mounted on the left or the right side of the antenna.

Step 2: Antenna Adjustment

Simply slide the antenna in the bracket and adjust the elevation and the azimuth. Tighten the screws to finish the installation.

Only one tool is needed for the entire installation.

Antenna Models

Asymmetrical Horn TP series features three different antennas with beam widths of 30, 60 and 90 degrees in the azimuth plane.

30° Asymmetrical Beam Antenna HG3-TP-A30

Frequency Range
5180 - 6000 MHz
Gain
20.5 dBi
Azimuth Beam Width -6 dB
H 30° / V 30°
Elevation Beam Width -6 dB
H 20° / V 20°
Mechanical Tilt
± 25°
Pole Mounting Diameter
22 - 80 mm

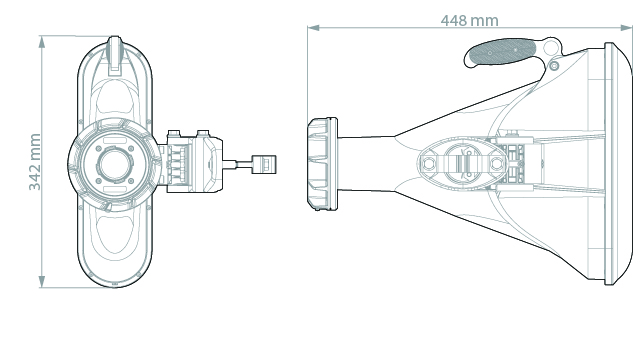

web rozmerovy HG3 TP A30

60° Asymmetrical Beam Antenna HG3-TP-A60

Frequency Range
5180 - 6000 MHz
Gain
17 dBi
Azimuth Beam Width -6 dB
H 60° / V 60°
Elevation Beam Width -6 dB
H 25° / V 25°
Mechanical Tilt
± 25°
Pole Mounting Diameter
22 - 80 mm

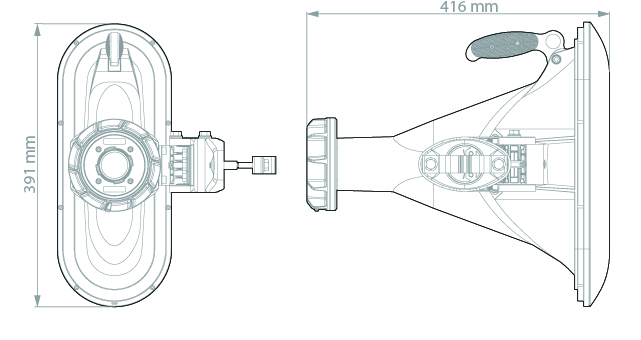

web rozmerovy HG3 TP A60

90° Asymmetrical Beam Antenna HG3-TP-A90

Frequency Range
5180 - 6000 MHz
Gain
16 dBi
Azimuth Beam Width -6 dB
H 90° / V 90°
Elevation Beam Width -6 dB
H 25° / V 25°
Mechanical Tilt
± 25°
Pole Mounting Diameter
22 - 80 mm
web rozmerovy HG3 TP A90

All Models At A Glance

30° Sector HG3-TP-A30

280.00 $ / exc. VAT

Product ID: HG3-TP-A30

60° Sector HG3-TP-A60

280.00 $ / exc. VAT

Product ID: HG3-TP-A60

90° Sector HG3-TP-A90

280.00 $ / exc. VAT

Product ID: HG3-TP-A90

Find In-Stock Products

Check our Stock locator service that provides real-time information about stock available at our distributors.



Availability

Expected Availability: February 2019
