Bracket for Wave AP Gen2

Bracket for Wave AP Gen2

Mounts UI Wave AP Gen2 with Asymmetrical Horns

Buy Here:

discomp streakwave ISP Miro Syscom
Overview Download Gallery

Compact, Practical Mounting for Wave AP Gen2

The BR-WG2 Smart Bracket adds a dedicated mounting point that allows the UI Wave AP Gen2 to be installed directly on any RF elements Asymmetrical Horn Antenna with a structural aluminium ring. This creates a clean, space-efficient setup ideal for deployments where a 90° Asymmetrical Horn serves both as a failover 5 GHz antenna and as a supporting mounting structure.

Bracket BR WG2 side 4x3 thumbnail2

Wide Compatibility Across Horn Antennas

BR-WG2 is compatible with any RF elements Asymmetrical Horn Antenna that use the structural aluminum ring, including:

  • Newest 6 GHz AH-WB Wideband Horns
  • Legacy 5 GHz AH-TP Series
  • All 4×4 Asymmetrical Horn Antennas

The mounted Wave AP device can use the horn either as a failover antenna or simply as a smart mounting point to build a more compact, integrated installation.

Up to two BR-WG2 brackets can be installed on a single 4×4 Asymmetrical Horn (one on each side).

Thumbnail v2

Simple Installation

BR-WG2 is extremely easy to install- just choose the side of the antenna and tighten four bolts.

Designed specifically for mounting the 60 GHz Ubiquiti Wave AP Gen2 onto Asymmetrical Horn Antennas, BR-WG2 enables the Wave AP Gen2 to be aligned in azimuth and elevation together with the horn, ensuring precise, coordinated positioning.

BR-WG2 provides universal mouning point and allows attachement of any 3rd party device that can mount to the 40mm tube.

Integrate Your Network Deployments

BR-WG2 may look simple, but in real-world applications it enables many highly practical deployment scenarios with Asymmetrical Horn Antennas.

It is a well-designed and well-thought-out solution — exactly what you expect from RF elements.

5 GHz Failover with Wave AP Gen2

With 90° Asymmetrical Horn Antennas, BR-WG2 provides an elegant, compact, and practical mounting solution.

The robust Horn structure supports the Wave AP Gen2 unit, and azimuth/elevation adjustments are synchronized — the Wave AP Gen2 moves together with the horn.

BR-WG2 can be swapped easily between left-side and right-side installation.

This configuration works perfectly with the new AH90-WB as well as the award-winning AH90-TP.

Powerful Options With 4x4 Wideband Horns

When mounted on a 90° 4x4 Wideband Horn, BR-WG2 enables extremely flexible setups. You can use one 2x2 Horn for a 5GHz failover, while another 90° 2x2 for independent 5 GHz, 6 GHz or wideband 5+6GHz sector deployment.

With 90° 4x4 5 GHz Asymmetrical Horns

On 5 GHz 90° 4x4 Asymmetrical Horn antenna, one of the 2x2 Horns can be used as an external 5 GHz failover antenna, while the other 2x2 Horn operates as another carrier sector antenna.

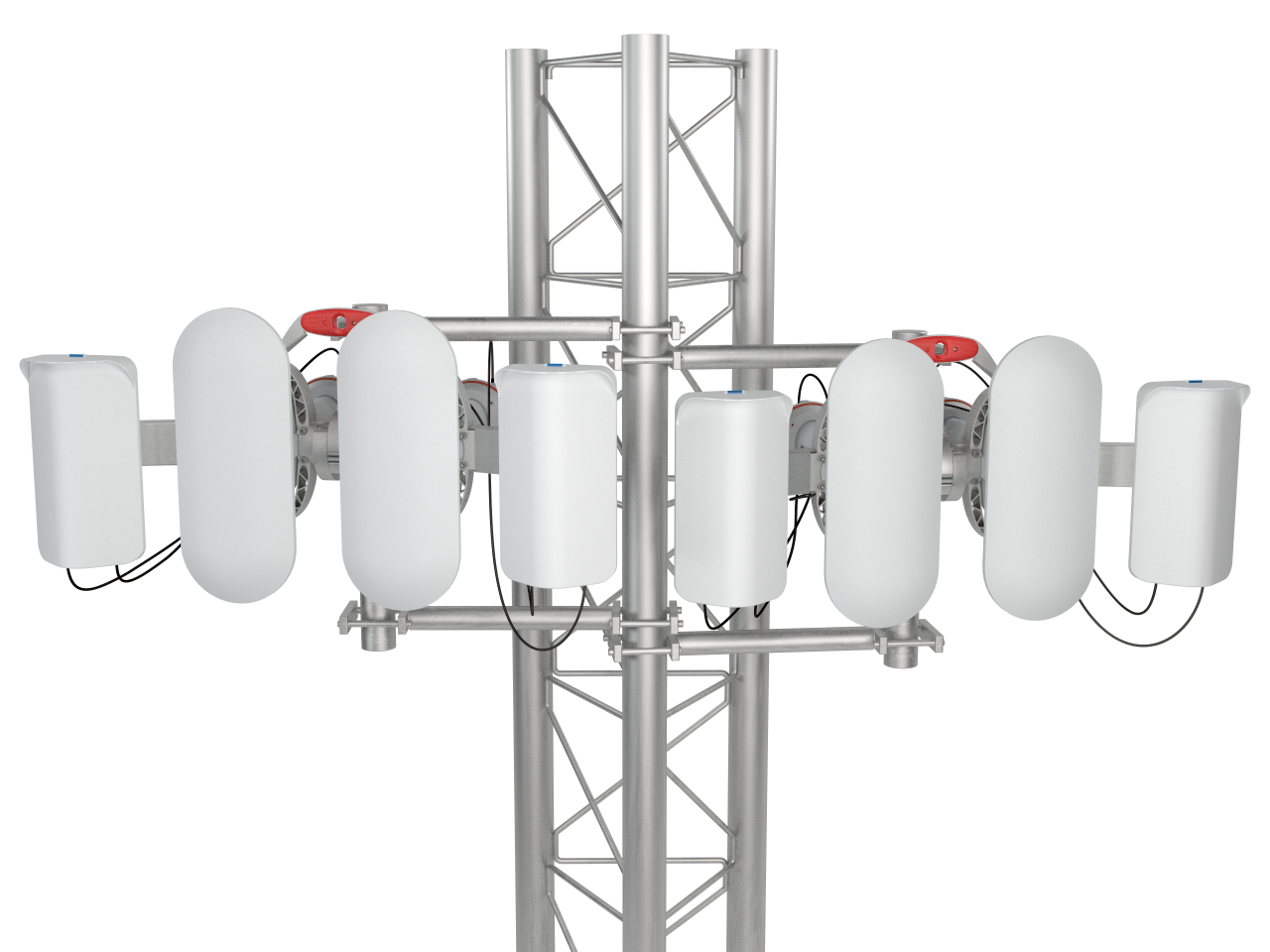

Reduce Tower Rental

BR-WG enables mounting of 60GHz Wave AP Gen2 horizontally spaced to 5 / 6 GHz Sector antennas. The horizontal mounting orientation saves valuable vertical tower space, enabling more efficient stacking of equipment.

It is perfectly possible to use BR-WG2 as mounting solution for any other device and utilizing the tower real estate to the max. Radios, Sensors, Cameras - the choice is yours. On 4x4 Asymmetrical Horns, you can use two mounts - one BR-WG2 on each side!

Bracket zpredu stoziar 4x3

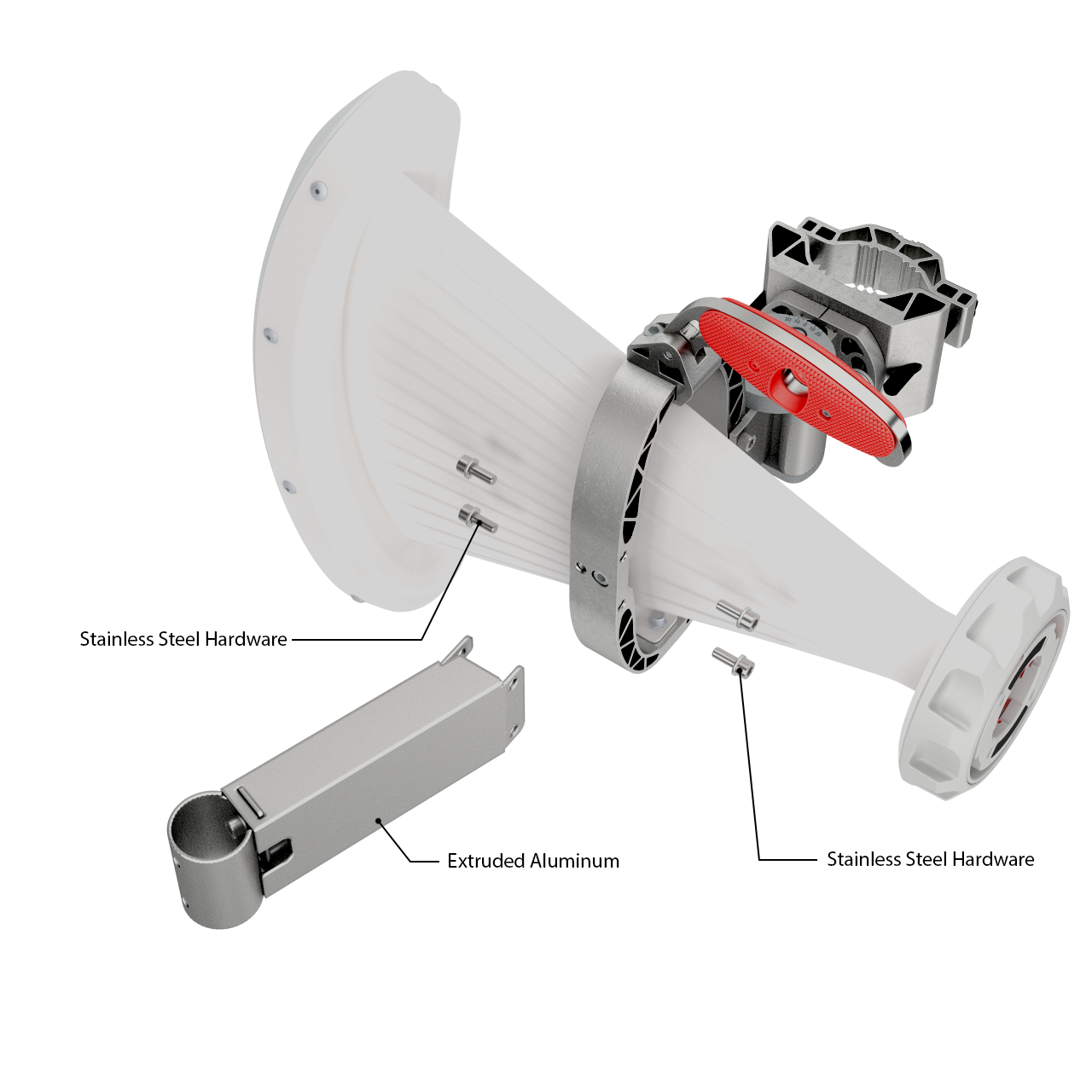

Compact and Durable

BR-WG2 is made of highly resistant extruded aluminum.

The surface is specially treated and passivated for extreme outdoor resistance and longevity.

Hardware is made of stainless steel.

Bracket BR WG2 materials

Product Specs

Smart Bracket BR-WG2

Compatible Antennas
AH-WB Series, AH-TP Series with structural aluminum ring
Dimensions
Length: 420mm, Profile 25x25mm
Mouning Hardware
4 x M5
Provided Pole Diameter
40mm
Packaging
Plastic Bag
Contains
BR-WG2 Bracket, Mounting Hardware

Smart Bracket BR-WG2-BUNDLE

Compatible Antennas
AH-WB Series, AH-TP Series with structural aluminum ring
Dimensions
Length: 420mm, Profile 25x25mm
Mouning Hardware
4 x M5
Provided Pole Diameter
40 mm
Packaging
Retail Cardboard Box
Contains
BR-WG2 Bracket, Mounting Hardware, 1x TPA-SMA, a pair of RP-SMA-FLEX-1M pigtails

Datasheet

Product Variants

BR-WG2

30.00 $ / exc. VAT

Product ID: BR-WG2
Datasheet (PDF)

BR-WG2-BUNDLE

60.00 $ / exc. VAT

Product ID: BR-WG2-BUNDLE
Datasheet (PDF)
