Practical Mounting for Tachyon TNA-305X Series

The BR-WG3 Smart Bracket adds a dedicated mounting point that allows the popular Tachyon TNA-305X to be installed directly on any RF elements Asymmetrical Horn Antenna with a structural aluminium ring. This creates a clean, space-efficient setup ideal for deployments where a 90° Asymmetrical Horn serves both as a failover 5 GHz antenna and as a supporting mounting structure.

BR-WG3 can also be used only in scenario, where BR-WG3 and Symmetrical Horn provide solely the dedicated mounting point without interconnecting with an installed device.

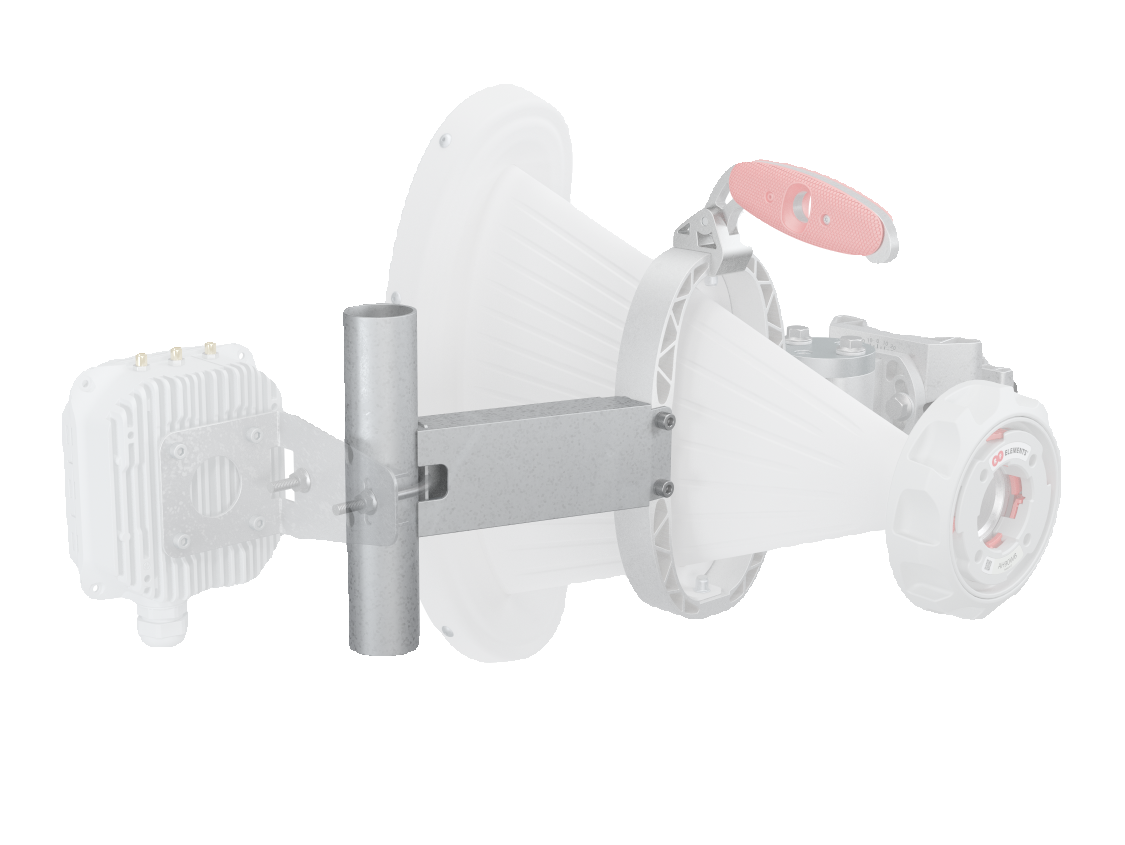

BRWG 3 transparent1 edited 4to3

Wide Compatibility Across Horn Antennas

BR-WG3 is compatible with any RF elements Asymmetrical Horn Antenna that use the structural aluminum ring, including:

  • Newest 6 GHz AH-WB Wideband Horns
  • Legacy 5 GHz AH-TP Series
  • All 4×4 Asymmetrical Horn Antennas

The mounted device can use the horn either as a failover antenna or simply as a smart mounting point to build a more compact, integrated installation.

Up to two BR-WG3 brackets can be installed on a single 4×4 Asymmetrical Horn (one on each side).

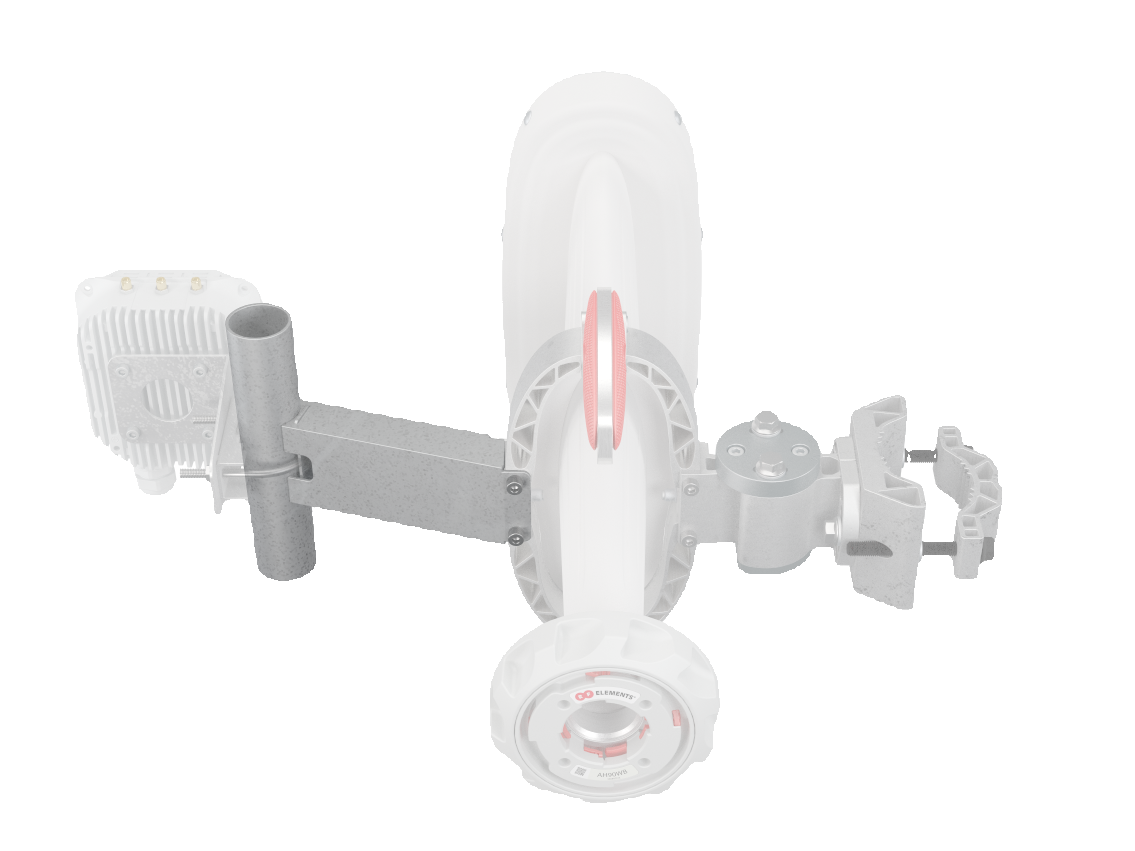

brwg3 tachyon tna 305x TopDown Left1 edited 4to3

Supports TNA-AK Antenna Kits

BR-WG3 is designed to support the additional Tachyon Antenna Kits. Simply flip the BR-WG3 bracket and the TNA-305X mounted with 90° TNA-AK kit will fit perfectly with RF elements Asymmetrical Horn antenna.

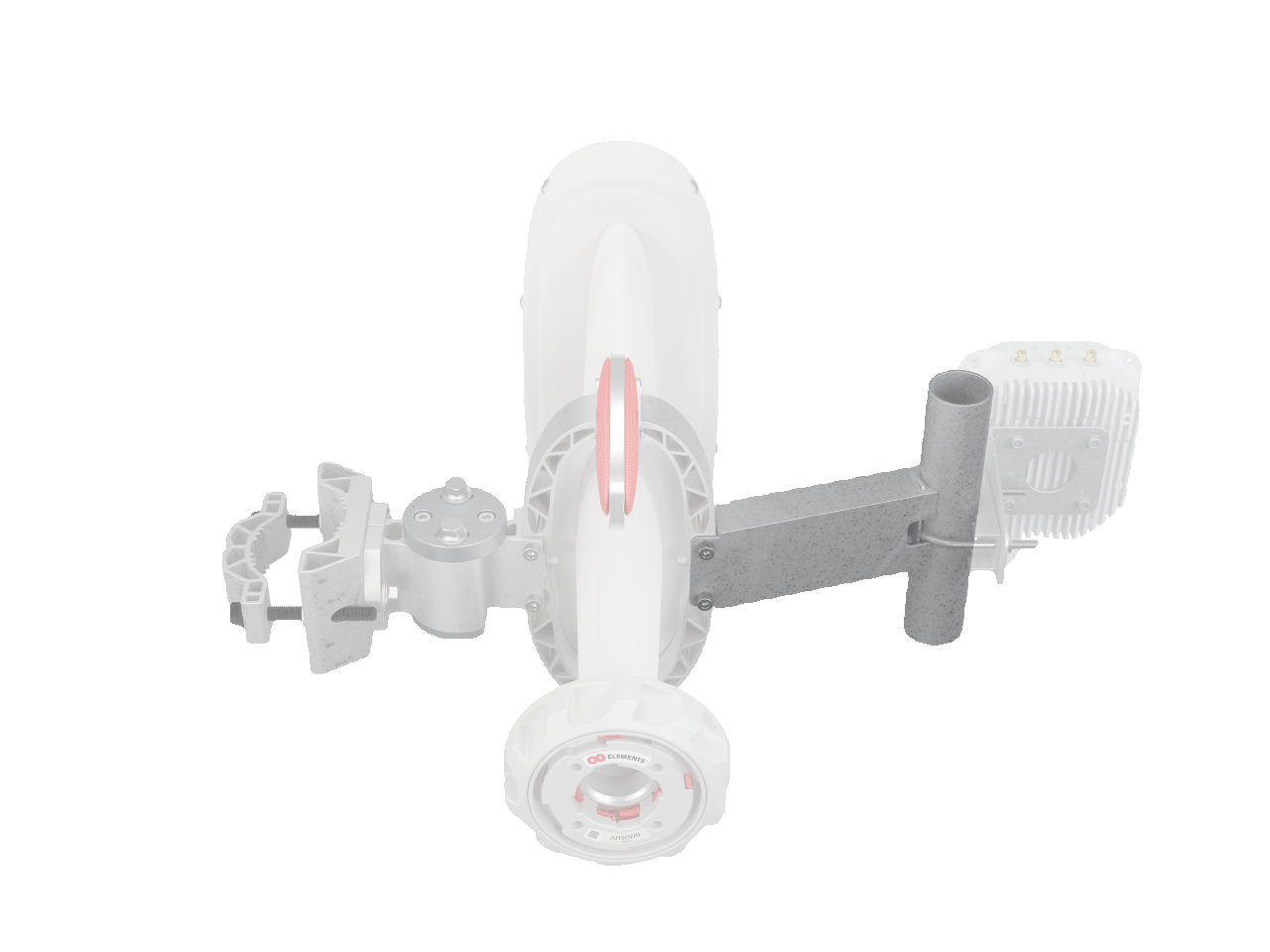

BRWG 3 TopDown Right 1 SLIDER1png

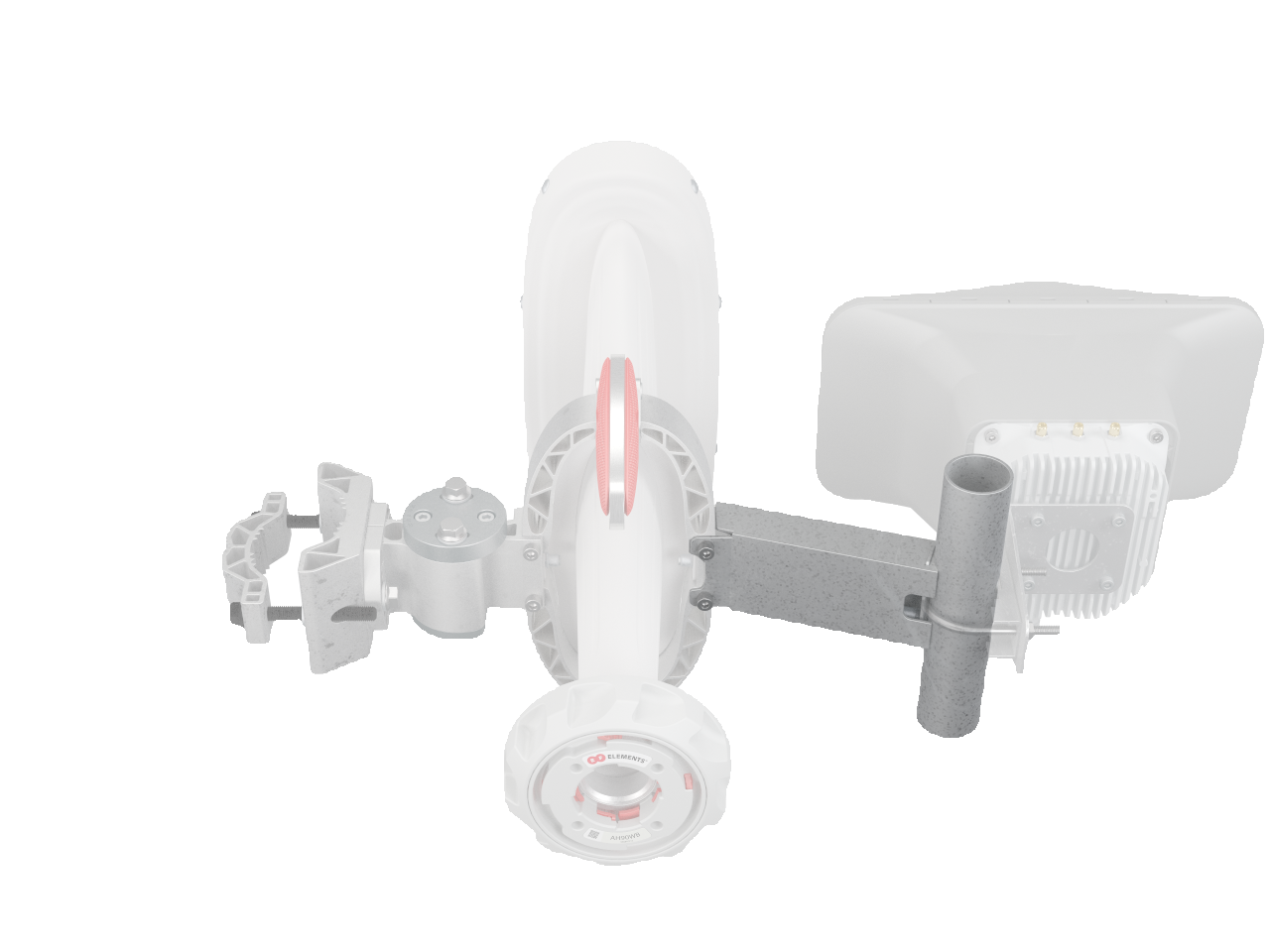

BRWG 3 TopDown Right 2 SLIDER2

Simple Installation

BR-WG3 is extremely easy to install - just choose the side of the antenna and tighten four bolts.

Designed specifically for mounting Tachyon TNA-305X onto Asymmetrical Horn Antennas, BR-WG3 enables the TNA-305X to be aligned in azimuth and elevation together with the horn, ensuring precise, coordinated positioning.

BR-WG3 provides universal mouning point and allows attachement of any 3rd party device that can mount to the 40mm tube.

Reduce Tower Rental

BR-WG enables mounting of 60GHz TNA-305X horizontally spaced to 5 / 6 GHz Sector antennas. The horizontal mounting orientation saves valuable vertical tower space, enabling more efficient stacking of equipment.

It is perfectly possible to use BR-WG3 as mounting solution for any other device and utilizing the tower real estate to the max. Radios, Sensors, Cameras - the choice is yours. On 4x4 Asymmetrical Horns, you can use two mounts - one BR-WG3 on each side!

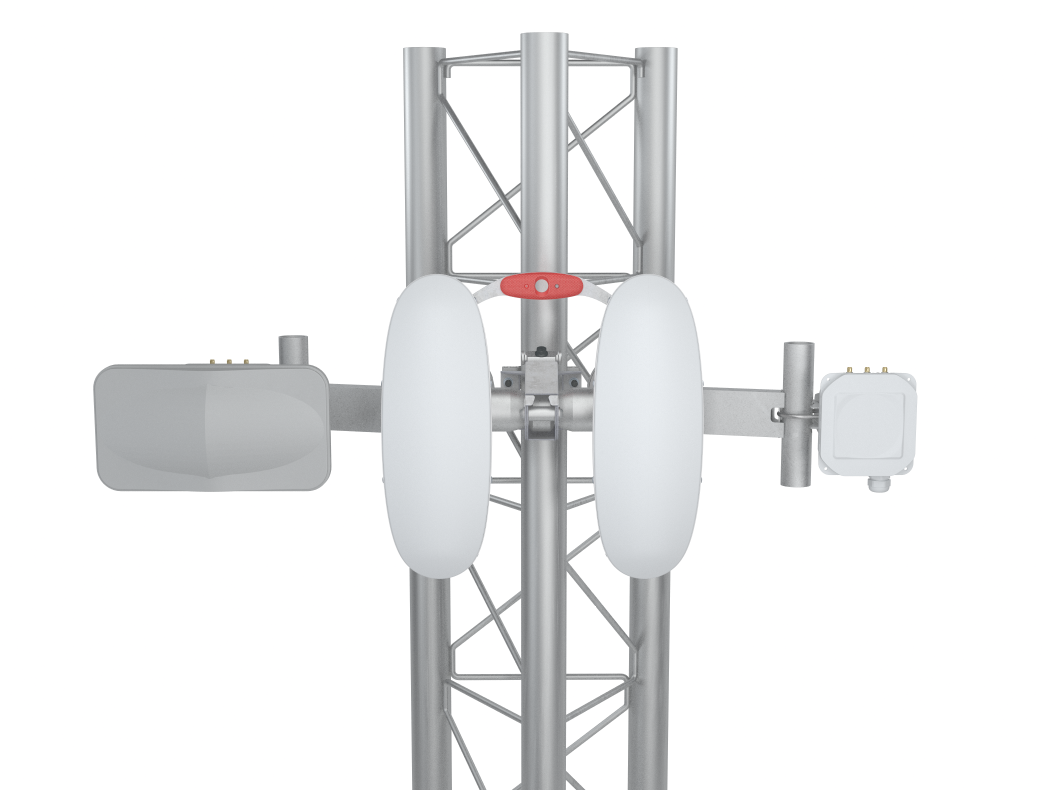

rf elements brwg3 tachyon tna 305x 90deg sector tower integration

Product Specs

Smart Bracket BR-WG3

Compatible Antennas
AH-WB Series, AH-TP Series with structural aluminum ring
Dimensions
Length: 420mm, Profile 25x25mm
Mouning Hardware
4 x M5
Provided Pole Diameter
40mm
Packaging
Plastic Bag
Contains
BR-WG3 Bracket, Mounting Hardware

Datasheet

Product Variants

BR-WG3

30.00 $ / exc. VAT

Product ID: BR-WG3
Datasheet (PDF)
