5 + 6 GHz Wideband Antennas for Scalable FWA Connectivity
With global adoption of 6 GHz unlicensed band for outdoor installations, operators increasingly require antennas that support both 5 GHz and 6 GHz unlicensed bands operation without hardware replacement. RF elements® Wideband Antennas deliver exactly that - engineered for extended frequency coverage with controlled radiation and real-world performance.
Why Wideband?
Antennas target certain frequency bands following user and regulatory requirements and practical limitations. When networks expand into new spectrum - such as 5 GHz evolving into 5 + 6 GHz - antennas typically require replacement, adding cost and complexity.

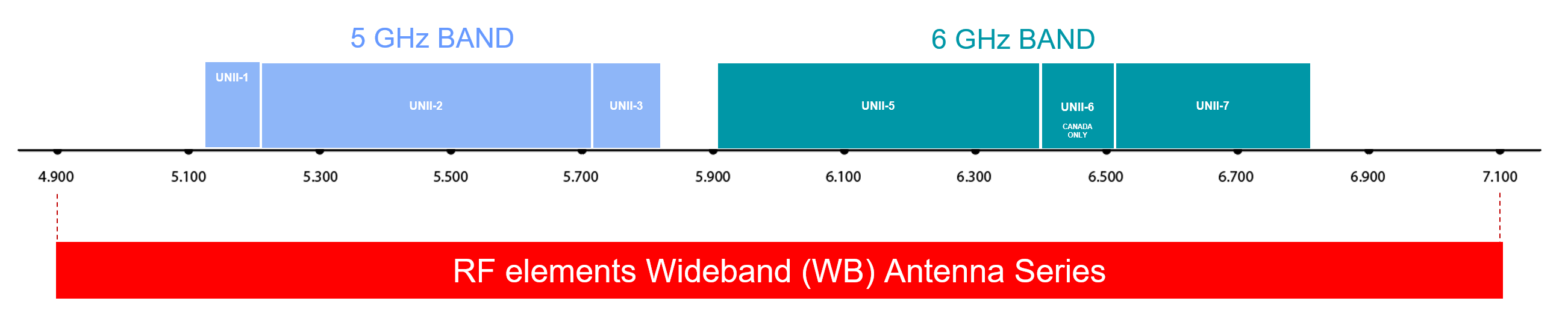

RF elements Wideband Antennas simplify this by enabling 5 GHz deployments today and expansion into 6 GHz tomorrow. They simplify inventory management and lower long-term upgrade costs.
Wideband capability means one antenna covers more spectrum. In case of RF elements you can add the following: without compromise.
Stable Wideband Beam Performance
Wideband performance is meaningful only if radiation characteristics remain consistent across the band. In terms of physics, narrowing the band provides practical advantages for radio and antenna designers, and widening the band brings substantial challenges for hardware designers. This is why RF elements wideband antennas shine.
RF elements wideband antennas maintain stable gain across 5 GHz and 6 GHz bands which is very difficult task to achieve. Controlled, predictable beam shapes with naturally attenuated side lobes guarantee excellent performance and strong co-location capability.
This results in improved Signal-to-Noise Ratio (SNR) and better link stability especially in dense WISP deployments where interference management is key.

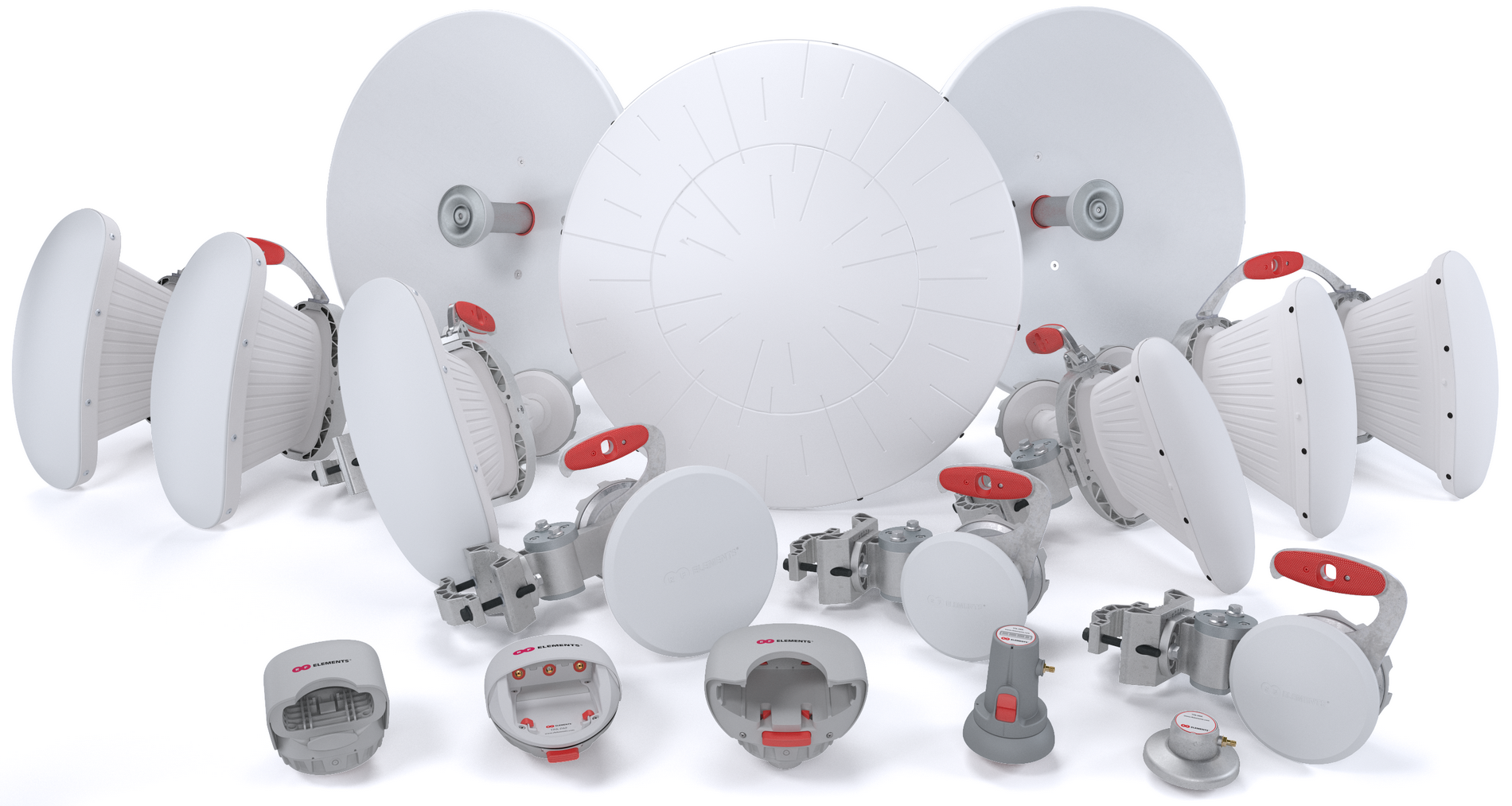

Wideband Product Lineup
RF elements offers Wideband antennas designed for both sector coverage and high-capacity links:
RF elements Wideband antennas includes following product types and models:
Wideband Asymmetrical Horn Antennas - Sector Antennas with Asymmetrical Beam
-
AH45WB - wideband asymmetrical 45° beam (45° Azimuth / 20° Elevation) with 19 dBi gain
-
AH60WB - wideband asymmetrical 60° beam (60° Azimuth / 25° Elevation) with 16 dBi gain
-
AH90WB - wideband symmetrical 90° beam (90° Azimuth / 25° Elevation) with 15 dBi gain
Asymmetrical Horns provide beams which are wide in azimuth and narrower in elevation. Deployment scenarios include wide horizontal coverage, tower mounted APs and wide area sectors with excellent sidelobe control.
Wideband Symmetrical Horn Antennas - Sector Antennas with Symmetrical Beam
-
SH20WB - wideband symmetrical 20° beam (20° Azimuth / 20° Elevation) with 21-23dBi gain
-
SH30WB - wideband symmetrical 30° beam (30° Azimuth / 30° Elevation) with 18 dBi gain
-
SH60WB - wideband symmetrical 60° beam (60° Azimuth / 60° Elevation) with 13 dBi gain
-
SH90WB - wideband symmetrical 90° beam (90° Azimuth / 90° Elevation) with 10 dBi gain
These antennas provide excellent performance for clean, controlled cells in dense, heavily co-located deployments. Symmetrical beam keeps energy tightly controlled and provides excellent interference rejection across 5 GHz and 6 GHz bands.
Wideband 4×4 Asymmetrical Horn Antennas
For high capacity deployments with MIMO AP radios and broader coverage options:
-
4×4 AH60WB - 4×4 asymmetrical wideband horn antenna (60°)
-
4×4 AH90WB - 4×4 asymmetrical wideband horn antenna (90°)
The 4×4 asymmetrical horn series provides 4 chains for spatial diversity, higher throughput potential, and improved performance with modern 4×4 radios in PtMP networks. It can also be used as a great space saving solution for dual carrier or dual band deployments.
UltraDish™ WB Wideband Directional Dish Reflector Antennas
-
UD29WB - A wideband, high-gain directional dish antenna optimized for high performance CPE deployments. UD29WB can be equipped with additional radome and side strut for extra resistance in high exposure areas.
With this powerful lineup, operators can support a broad range of coverage strategies - from narrow high-gain sectors to 4×4 high-capacity sectors and long-range CPE connections. We relentlessly expand our antenna portfolio to suit every deployment requirement.

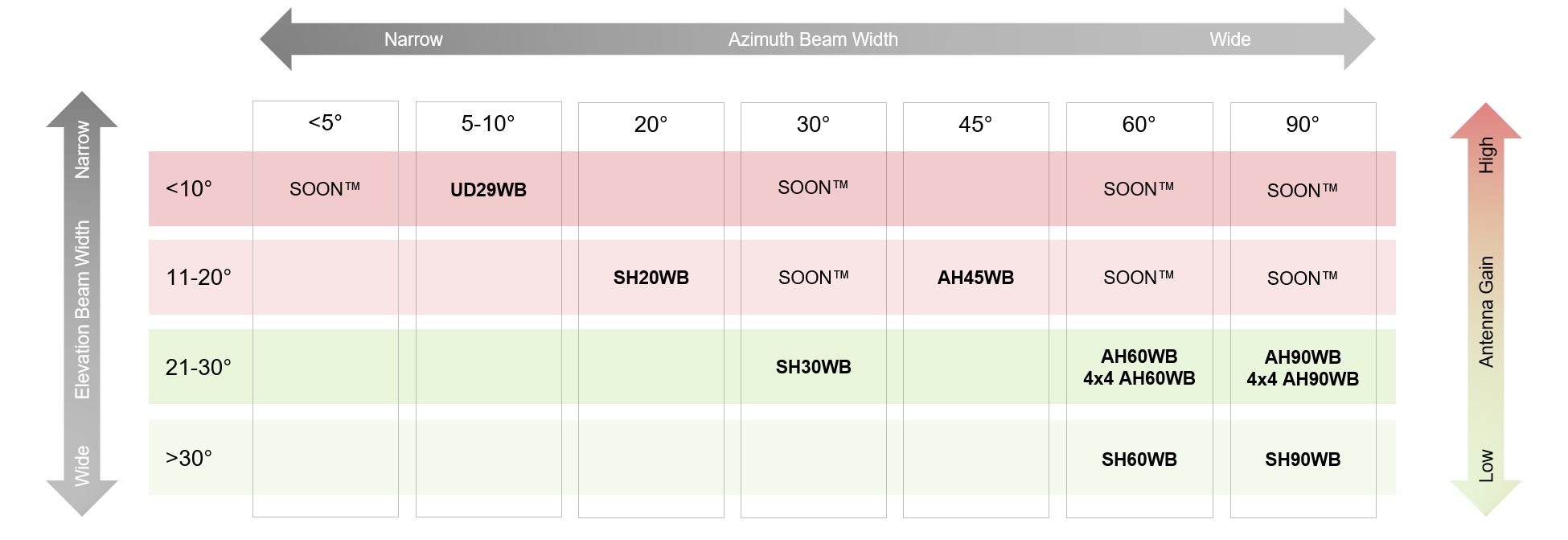

Flexible Coverage Options: Choose the Cell You Need
Our Product portfolio is essentially a Scalable RF ToolBox. Wideband models are available in popular and proven symmetrical and asymmetrical beam shapes, enabling operators to optimize sector layout and overlap. Wideband Antennas enable deployments of multi-carrier 5+6 GHz networks. Operators can create scalable cluster sector designs and substantially increase frequency reuse.
Combined with the TwistPort™ waveguide interface, wideband antennas provide clean installs, fast deployments and deliver predictable and reliable RF performance.
Built for Real-World Deployments
RF elements Wideband Antennas are engineered for extreme durability, long service life, and reliable performance in demanding outdoor environments.
More than a decade of real-world experience, supported by hundreds of thousands of horn antennas deployed worldwide, provides continuous feedback that drives our engineering and product development. Every new generation of RF elements antennas builds on this field-proven experience.
The Wideband Antenna platform combines robust extruded and pressed aluminum construction, improved corrosion resistance, reduced weight, and a more compact mechanical design compared to legacy 5 GHz models. Additional surface treatment, stainless steel hardware with anti-seize coating, and precise mechanical alignment further improve long-term reliability.
The split-mount design improves installation ergonomics and safety on towers and rooftop sites. The antennas are laboratory-tested for vibration and corrosion resistance and validated through wind tunnel testing.
Together, these features ensure reliable operation even in harsh climates, coastal environments, and demanding network deployments.
Designed and Manufactured In-House in the EU
RF elements Wideband Antennas are designed, engineered, and manufactured in-house in the European Union. We build what we design, and the same engineering team that develops the products is directly involved in bringing them into production.
This level of vertical integration gives RF elements full control over RF design, mechanical execution, quality assurance, and repeatable performance. It also supports shorter supply chains, more reliable product availability, responsive technical support, and the flexibility to develop custom designs or product modifications when needed.
By maintaining control over both development and manufacturing, RF elements ensures that every antenna meets the demanding performance and durability standards required for professional wireless networks.
Future-Proof Your Network
As 6 GHz adoption accelerates globally, infrastructure flexibility is essential. RF elements 5 + 6 Ghz Wideband Antennas enable service providers to avoid repeated and unneccessary antenna replacement and future-proof installations for new radio platforms.
With the latest wideband antenna series, operators can rapidly deploy multi-band and multi-carrier networks without compromising support for advanced MIMO and high-capacity strategies.
For distributors and integrators, wideband antennas simplify product portfolios, improve inventory efficiency, and address the growing demand for multi-band solutions.
See available wideband products Here
